2016 HY X96 2G 16G Amlogic S905X Quad Core Android 6.0 Set TV Box Wifi HDMI 2.0A 4K*2K Kodi Android Marshmallow H.265 Media Player
X96 Tv Box Features
1. CPU: Amlogic S905X Quad Core ARM Cortex A53 @2GHz
2. GPU: Penta-core Mali-450MP GPU @750MHz,
3. System: Android 6.0 Marshmallow
4. RAM: DDR3 2 GB
5. ROM: eMMC 16 GB
6. Wifi : IEEE 802.11 b/g/n
7. HDMI: 4K*2K UHD Output, HDMI 2.0A
8. Power: DC 5V/2A;LED indicator,Working :Blue; Standby:Red
CPU
Amlogic S905X Quad Core ARM Cortex A53 @2GHz
GPU
Penta-core Mali-450MP GPU @750MHz,
Memory
DDR3:1GB (Option: 2GB)
Flash
eMMC:8GB (Option:16GB )
WiFi
IEEE 802.11 b/g/n
Moudle
Plastic : Black Color

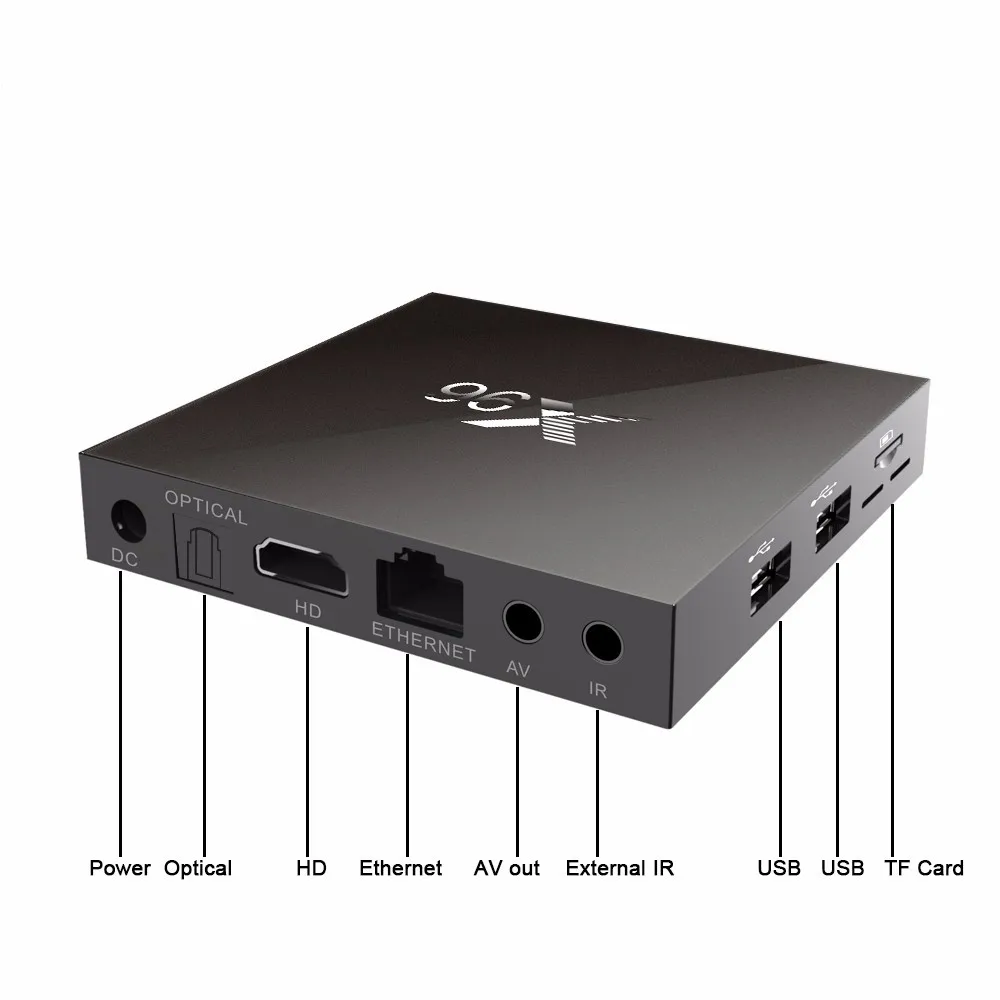

I/O
1*HDMI
4K*2K UHD Output, HDMI 2.0A
1*AV OUT
480i/576i standard definition output
2*USB
1* USB Host Port ,1*USB Device
1*OPTICAL
Digital Audio output
1*RJ45
Ethernet Interface
1*TF CARD
Support 4GB/8GB/16GB/32GB/64GB
Power
DC 5V/2A;LED indicator,Working :Blue; Standby:Red
Software
OS
Android 6.0 Marshmallow
Video
1. AMLogic video Engine(AVE)with dedicated hardware decoders and encoders
2.Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding
3. Video/Picture Decoding
-VP9 Profile-2 up to 4K*2K 60fps
-H.265 HEVC MP-10 L5.1 up to 4K*2K 60fps
-H.264 AVC HP L5.1 up to 4K*2K 30fps
-H.264 MVC up to 1080P 60fps
-MPEG-4 ASP L5 up to 1080P 60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P 60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps
-MPEG2 MP/HL up to 1080P 60fps
-MPEG1 MP/HL up to 1080P 60fps
-RealVideo 8/9/10 up to 1080P 60fps
4. Low latency 1080P H.264 60fps encoder
5.HDR10 and HLG HDR Video Processing
6.Supports mkv,mpg,wmv,mpeg,dat,avi,mov,iso,mp4,rm and jpg file formats
7. Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P 60fps with low latency
Audio
Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM
HD JPEG,BMP,GIF,PNG,TIF
Language
English French German Spanish Italian etc multilateral languages
Appliactions
Online
Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps
Apps download freely form android market,amazon app store etc.
Medium
Local Media playback,Support HDD, U Disck ,SD/MMC Card .
Talk online
Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc
Others
Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Package:
1 x Amlogic S905X Android Tv Box
1 x Charger
1 x HDMI Cable
1 x User manual

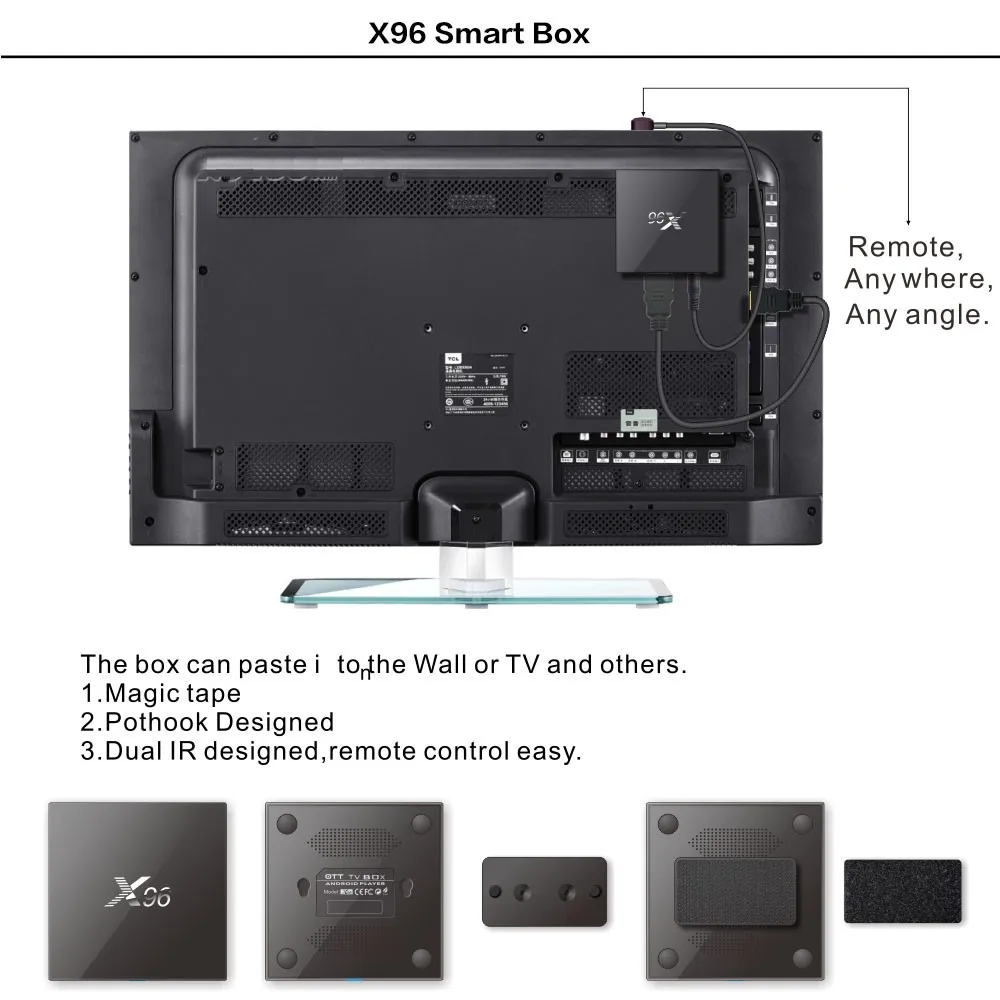

这个盒子的特点是有一个IR插口，也就是红外线外接插口，如下面图示，可以任何角度遥控盒子，也可以挂在电视机后面
盒子配置比较强
https://www.aliexpress.com/store/product/2016-Newest-X96-Android-6-0-Marshmallow-2GB-16GB-Amlogic-S905X-Quad-Core-TV-Box/113427_32709231775.html?spm=a2g01.8041047.0.0.eamJvn&sdom=101.659.689.0_32709231775 |
